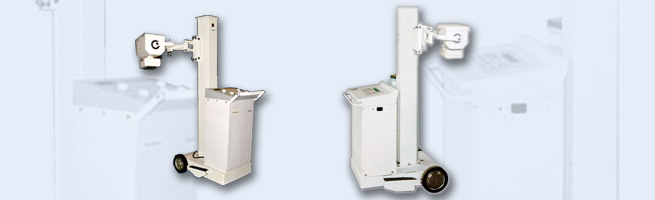

AXD - 100

Special Features

  • Five Section Radiolucent top
  • Semi feather touch control panal
  • Electronic solid state timer with 24 step
  • Independent KVp, mA & mAs display
  • Line voltage/mA meter for voltage adjustment
  • X-ray exposure on audible tone
  • Mains ON/OFF Feather touch membrane button
  • Overload function to protect the tube
  • Counter balanced mechanism & 3 wheel design for max. mobility & manoeuver ability
  • Horizontal and vertical travel of arms for better positioning
  • Collimater operation from control panel
Overall Dimensions
Length 1200mm
Width 650mm
Height 1800mm
Movements
Up/down fully counter-Balance
Vertical Travel 1300mm
In/Out Travel 400mm
Angular Travel +40 deg
Tube Angulation Full Rotation

Technical Specification

General Rating
Radiography 100mA at 100Kvp
Fluoroscopy 5mA at 100Kvp
Tube Voltage
Radiography (2 Kvp steps)
Major Kvp 40Kvp to 100Kvp
Minor Kvp 2Kvp to 10Kvp
Tube Current
Radiography 40mA, 60mA
  80mA, 100mA
Self- Contained Tube Head Specification
Rectification Stationary Anode, 40KHU
X-ray Tube (2.8x2.8) Sq.mm. Focal Spot
Timer
Radiography 0.02 sec. to 05 second solid state (24 steps)
POwer
Power 8 KW
Power Supply
Single Phase 230V, 50/60 Hz, 10KVA 0.6 Ohms line resistance
(*On a weak power supply line, it is recommended to have 3- phase 415V, 0.6, 10 kVA line)
