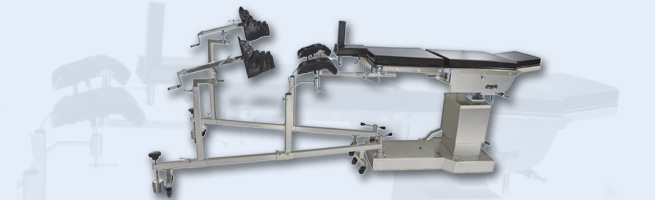

Operation Theater Tables - C- Arm Table
Special Features
- Five Section Radiolucent top
- Optional X-ray translucent, C-Arm compatible inbuilt kidney bridge
- Eccentrically positioned top for maximum access for movement of C-Arm image intensifier
- Heavy & sturdy ‘T’ shaped base allowing maximum foot room for operating team
- Mobile on smooth running castors & Floor locking system for stability
- Heavy & Hygienic stainless steel covered base and lifting column
- All the fittings, side rails and accessories made of RUST FREE stainless steel
- Accessories clamps made of rust free light weight aluminum
- Complete Rust Proof Design
STANDARD POSITIONING
- Hydraulic UP/DOWN
- Precise and efficient and crank mechanism to obtain trendelenberg / reverse trendelenberg
- Lateral tilt both sides, Flex & Reflex, & Chair
- Detachable, adjustable and interchangeable head & leg sections
- X-ray translucent, C-Arm Compatible
- Hand operating table with mattress and telescopic support
Technical Specifications
- Overall length of Table top 1950 mm
- Overall width of Table top 500 mm
- Min Height 770 mm
- Max Height 1020 mm
- Trendelenberg 25º
- Reverse Trendelenberg 25º
- Lateral Tilt 25º
- Chair 85º
- Flex/Reflex 30º/220º
Standard Accessories
- 50 mm water proof Rubber mattress
- Pair of S.S. arm board with mattress
- Pair of shoulder support
- Pair of lateral support
- Anesthetic Screen frame
- Pair of Geopal type knee rest
OPTIONAL ACCESSORIES
Orthopedics
- Horse shoe shaped Neuro Surgery Head rest
- Mayfield three pin head fixator for Neuro Surgery in Supine & Sitting Position
Urology / General Surgery
- Inbuilt kidney bridge X-ray translucent & C-Arm Compatible
- PNCL attachment (Extra long leg section X-ray translucent with telescopic support
- TUR Drainage Tray
Neuro Surgery
- Orthopedic Attachment
Wholly made of stainless steel consists of following:
Orthopedic leg traction device.
Broad Hand Surgery Table & telescopic support & mattress.
L- shaped knee rest.
Inner thigh support for lateral positioning.
Raised arm board for lateral positioning.
Steinmann pin clamp. - Counter Traction post for tibia
- Hand Traction Device
- Spine Frame
