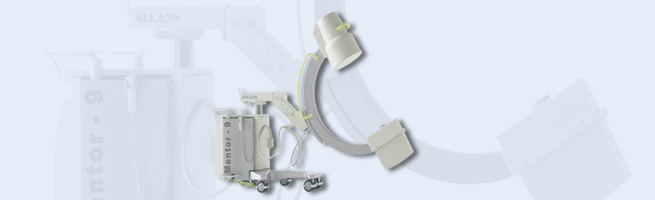

C-Mentor 6

Established in the year of 1992, allans has made a name for itsef in the biomedical engineering as a leading manufacturer of the X- ray equipments in the country. The company has been appreciated for perfectly engineered X-ray equipment’s of excellent quality and high standard workmanship.

High Quality at Pocket Price

Allans offers a complete solution for every X- ray application C – Mentor6 is an X-ray system with sharp & clear images. C- Mentor6 is the combine and the advanced generator design and feasible movement for todays complicated surgical operations. C- Mentor6 is high quality single / double field ( 6” & 9”) I.I tube and offer superb image quality.

Special Features

  • Ultra compact Image intensifier with CCD camera (9”)
  • Excellent spatial resolution with 0.3 and 0.6 mm focal spots
  • Presence of standby mode eliminates accidental radiation release during transportation
  • Image rotation for visualization of image irrespective of position of organ
  • Ideal System for Urologists, Orthopedic surgeons, Cardiologists, interventional Radiologist, Neurologist & Gastroenterologists
  • Thermal protection

Technical data

Overall Dimensions
Orbital movement 105 deg
Rotation/ Angulations 360 deg
Horizontal travel 22 cm
Swivel range (Panning) + / -12.5 deg
Vertical travel 43 cm
Focus - II distance 90 cm

X- Ray generator

Type : Stationary Anode (Or) 5.0 KW with a Rotating Anode Tube

Radiographic Parameters
KV range 40- 110 kV
mAs 1- 200 mas in steps of 1
mA 50 mA
Time 20 ms – 5 secs
Fluoroscopic Parameters
Fluoroscopic voltage (2 Kvp steps)
Normal Fluoroscopy 40Kvp to 100Kvp
High Definition 2Kvp to 10Kvp
Fluoroscopy 0.8mA-8mA
Fluoroscopy ADR ( Automatic Dose Regulation ) & Manual mode
X- Ray tube
Type Rotating anode dual focal
Focal spot sizes 0.3x 0.3 mm. And 0.6X 0.6 mm
Selection Automatic selection of focal spot for Fluoroscopy & Radiography
Thermal Protection Auto cutoff of fluoroscopy & radiography in case of tube head temp. Exceeding 70 deg. +/-5 Celsius
Collimator System Horizontal & Vertical collimation

Cassette holder (optional)

Format : Auto centering 8”x10” & 10” X 12”

TV system
Type CCD camera of high sensitivity & resolution
TV standard CCIR 625 lines at 50 Hz.
Image rotation 360deg. – clockwise and anti clockwise
Image reversal Left /right and top / bottom
No. of monitors 2 high – resolution flicker free 100 hz monitors for live image display & last image Hold & stored memory display
Size of Monitor screen 20”monochrome. High brightness, high resolution with independent brightness, contrast, and rotation control
Power Supply
Power requirement Maximum 4kVA
Mains voltage Single phase 170-260V/50Hz
UPS 1KVA
