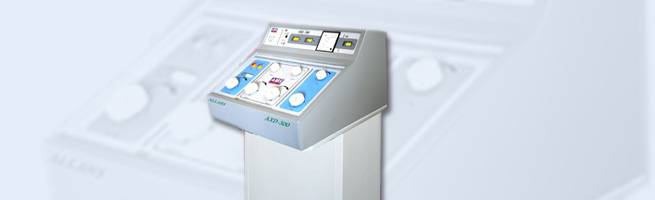

AXD - 300 / 500
AXD- 300 is the new revolutionary range of X-ray is now being offerd by ALLANS. Its image quality and contact help easy diagnosis. It has been deve-Loped by keeping in mind all the problems faced by X-ray developers. It is easy to operate.
The AXD -300/500 generator is designed to fulfill the requirement of all Radiography, Fluroscopy, Spot Filming and special procedures with manual Or motorized table. The generator is suitable for use with image intensifier TV systems.
Indicatores
- Five Section Radiolucent top
- Single phase (2 Pulse) medium powered X-ray diagnostic generator Maximum Rating; 300mA at 100k VP (24KW)
- A sleek console has very SIMPLIFIED &REDUCED control switches and also has Very attractive digital and L.E.D. display
- Selected mAS value pre-reading is displayed on digital panel. No necessity of calculating mAx sec. product
- kVP metering concept, kVP value is displayed on digital panel
- High voltage silicon rectifier for consistent radiographic results and law system losses
- Automatic instantaneous tube overload protector blocks the exposure,if selected exposure, selected factores are in excess Of X-ray tube ratinh
- Spot film on any technic is possible
Special Features
- Five Section Radiolucent top
- Single phase (2 Pulse) medium powered X-ray diagnostic generator Maximum Rating; 300mA at 100k VP (24KW)
- A sleek console has very SIMPLIFIED &REDUCED control switches and also has Very attractive digital and L.E.D. display
- Selected mAS value pre-reading is displayed on digital panel. No necessity of calculating mAx sec. product
- kVP metering concept, kVP value is displayed on digital panel
- High voltage silicon rectifier for consistent radiographic results and law system losses
- Automatic instantaneous tube overload protector blocks the exposure,if selected exposure, selected factores are in excess Of X-ray tube ratinh
- Spot film on any technic is possible
Technical Specification - 300 | |
|---|---|
| Generator Rating | Radiography 300mA at 100k VP Fluroscopy 5mA at 100k VP |
| Tube Current | Radiography Small Focus : 50mA & 100mA Large Focus : 100mA, 200mA and 300mA Spot Filming 200mA selection Fluroscopy 0-5 mA stepless |
| Tube Voltage | Radiography 40kVP Fluroscopy 45kVP |
| Timer | Radiography 0.02 to 10 secs |
| Tube Specification | Dual Focus rotating anode operation on 20/40 KW |
| Power Consumption | 24KW, 2 Pulse Genrator |
| Power Supply | Three phase 440 V, 50/60 Hz (0.5 ohms line Resistance with three phase to single phase Transformer) |
Technical Specification - 500 | |
|---|---|
| Generator Rating | Radiography 500mA at 125kVP Fluroscopy 5mA At 125kVP |
| Tube Current | Radiography Small Focus : 50mA&100mA Large Focus : 300mA, 400mA,and 500mA Spot Filming 200mA Selection Fluroscopy 0—5 mA stepless |
| Tube Voltage | Radiography 40kVP—125kVP Fluroscopy 45kVP--- 110kVP |
| Timer | Radiography 0.02 to 10 secs |
| Tube Specification | Dual Focus rotating anode operation on 20/40KW |
| Power Consumption | 40 KW,2Pulse Generator |
| Power Supply | Three Phase 440 V, 50/60 Hz (0.5 Ohms line Resistance with three phase to single phase Transformer |
